GUARD-ONE
Integrated Counter-UAS System
Designed to elevate drone detection, identification, monitoring, and countermeasures to unparalleled heights.
To achieve a comprehensive and all-encompassing strategy, an integrated and modular
solution for C-UAS proves to be an extremely effective course of action. Our exclusive
detection and defeat systems enable us to provide highly capable setups. Our layered
solution is built upon the following components:
- A multisensory subsystem for early detection
- Analysis and decision support for quick identification
- A robust set of RF countermeasures to neutralize threats
- Intuitive radar and countermeasure operator consoles, representing the pinnacle of stateof-the-art solutions
CPM ALL-IN-ONE

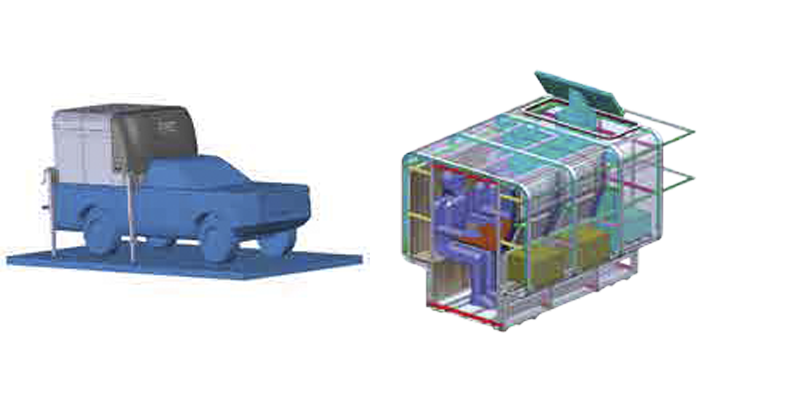

The integrated portable C-UAS solution is composed of a detachable situation awareness station on a vehicle, equipped with a 3D Radar, radar operator & jammer operator consoles, and counter UAS components. It is designed to provide an all-in-one solution with the capability of detecting, monitoring, identifying, and tracking potential threats, enabling rapid action to combat the increasing C-UAS threats.
CABIN ALL-IN-ONE COMPOSITION
- 2D or 3D Radar & Radar Operator Console
Possible Anti-Drone Jammer Options:
− CPM Watson Plus C-UAS Jammer
− CPM Wilson Plus C-UAS Jammer

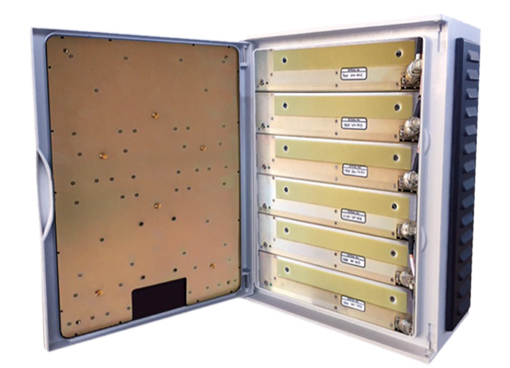

− CPM HPRC-6B-Box Fixed C-UAS Jammer
• CPM Silent BTS Radio Link
• Counter Measure Operator Console
• Optical Target Aiming System and Digital Video Transmission
• Radio Frequency Direction Finder

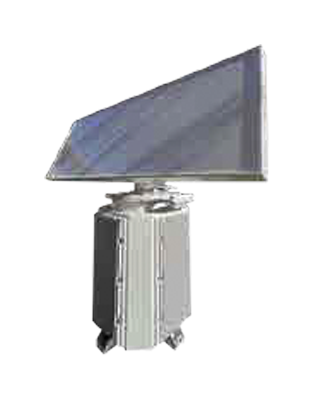

CPM RADAR-ONE
2D or 3D X-Band Drone Surveillance Radar
The CPM Radar-One detects UAV targets in the presence of a direct line of sight. It measures the 3D range, azimuth, and altitude coordinates, while also estimating the target’s RCS, velocity, and course. The CPM Radar-One offers the advantage of detecting drones equipped with GPS setups. It has been designed for all-weather, long-term operation, which can be controlled locally or remotely.
As a result of this advanced processing, information about potential threats can be displayed on the user-friendly GUI, and warning messages are generated on the command and control console.

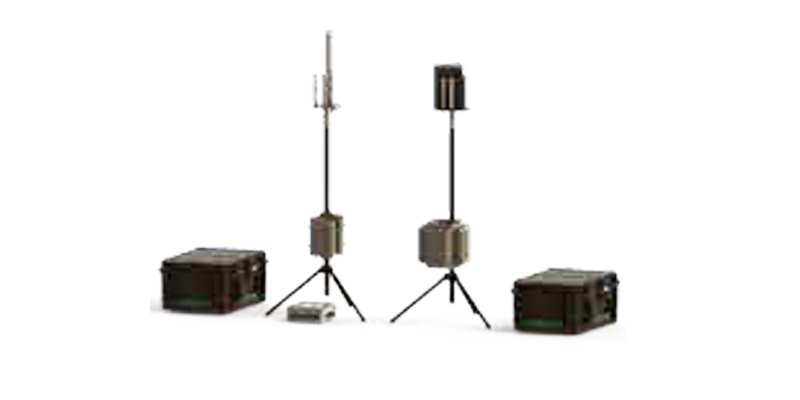

CPM DEDALUS
2D or 3D X-Band Drone Surveillance Radar
Dedalus is a drone detection system based on passive
RF technology for detection, classification,
frequency localisation and arrival direction estimation
of drones (commercial and homemade) and
their pilots in order to protect prisons, airports,
critical infrastructures and sensitive sites (in urban
and suburban context), without interfering with
public infrastructures and surrounding networks.
Dedalus works by detecting the communication
between the drone and its pilot ensuring 24/7
protection.
...AND MORE: A CPM SILENT BTS REPEATER CONNECTED TO THE PORTABLE JAMMERS
CPM’s Silent BTS Wireless Network System is composed of one or more
SILENT-BTS units, CPM portable anti-drone jammers named WILSON& WATSON, and the counter-measure operator console. Once the target has
been identified, a wake-up alert is triggered, and the broadcast information
on the drone’s position is sent to the jammers. The jammers’ display will guide
the operator to aim accurately at the target’s position, providing assistance
for the effective neutralization of the threat.
WATSON
WILSON
RADAR & COUNTER-MEASURE CONSOLES
Drone technology advances rapidly, and only an all-inclusive solution can keep up.

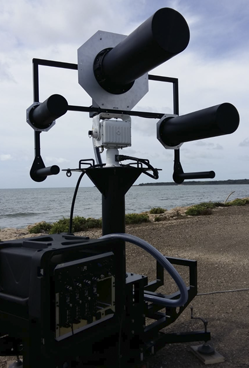

CPM KHANN-ONE
High Power Drone Jammer
• Possibility to integrate with external detection systems

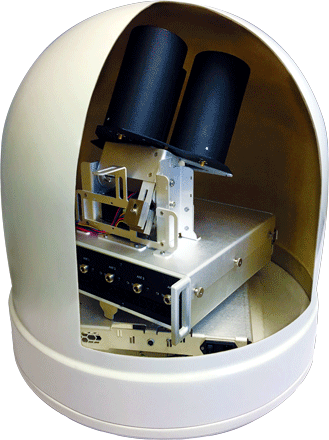

CPM CUPPOL-ONE
CPM 6B DRONE
