CPM DJI 120 4B

GENERAL DESCRIPTION

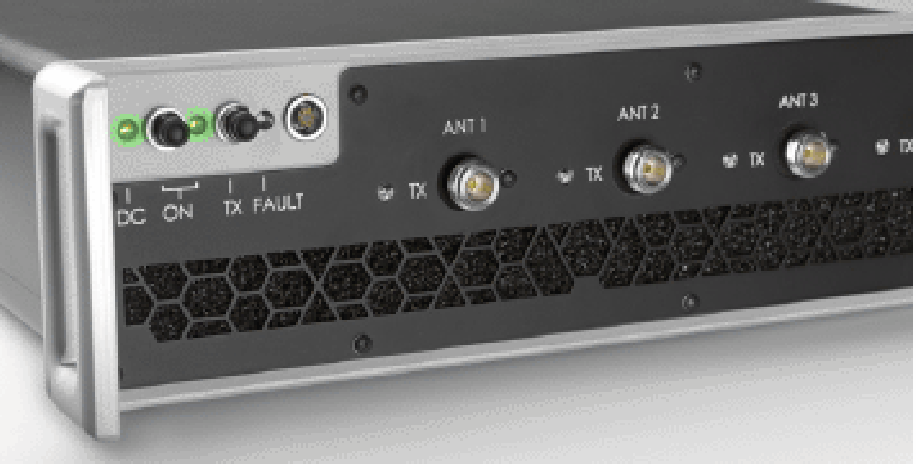

The CPM-Drone Jammer is a drone countermeasures system which protect against drone intrusion. Lightweight and easy to use, it is the latest application of our well proven digital jammers and technology. Small and transportable, the system consists of four band jammers circuits capable to cut the most common links between the drones and the operators/GPS, avoiding the drones to reach their designated target.
The system is equipped with 4 jammer modules having GAN Technology Power Amplifier Provided with 30W each, available for all frequencies from 20-6000 MHz.

CPM DJI
CPM DJI 120 4B

KEY FEATURES

  • FOUR BANDS/30W each
  • LIGHTWEIGHT
  • SIMPLE COMMANDS BY REMOTE CONTROL
  • EASY TO USE AND TRASPORT
  • IP 65 CARBON FIBER ENCLOSURE

TECHNICAL SPECIFICATIONS
GENERAL INFORMATION
Jamming Frequencies and RF Power Output

  • Band no.1 30W +/- 1.5 dB available
  • Band no.2 30W +/-1,5 dB -- SAT 1500MHz
  • Band no.3 30W +/-1,5 dB -- 2,4-2,5 GHz Wi-Fi
  • Band no.4 15W +/-1,5 dB -- 5,8 GHz Video Link

Power supply: Battery operated by internal lithium battery
Endurance: Stand by 20h - Full Power Transmission ON Approx. 1 hour
Temperature operating range: 0°C + 55°C
Jamming Mode: CW Full Band Digital sweep and Digital Noise
Jamming Technology: Direct Modulation over Digital Direct Synthesized Signal
Antennas: Directive Rifle style Antenna (1 set of 4 high gain directive antennas). High efficiency drone jamming. approx 30'
Effective UAV blocking Range: Approx. 700 m, where 70 m is the distance between the UCS (remote control) and the drone ratio 10:1 (distance UAV/DJ / distance UAV-UCS)
Optional Intelligent Display: Intelligent Display with broadcast informations sent by detection system on target. Wake-Up Alert on the screen / Target bearing informations

DIMENSIONS AND WEIGHTS
Rifle style directional antennas: Approx. 900 mm
ManPack dimensions: 350 mm x 545 mm x 230 mm
System Total Weight: 17 Kg (Battery, backup and antennas Included)

POWER SUPPLY
Power Supplay (optional delivery): 2 batteries type BB2590
Battery charger (optional delivery): Dedicated battery charger for BB2590 (one at a time)

Data and specifications subject to change without notice
