CPM HPRC-6/12B BOX
30W x 6 up to 12 Bands Mobile Phones Jammer

GENERAL DESCRIPTION
The HPRC 6/12B BOX is the latest fixed release of our well proven Multiband Medium Power Digital Jammer. It covers combination of Mobile and Wi-Fi bands, for a total up to 12 modules for each system. It has been designed to be operative 24/7 into an anti-vandal fiber-glass IP65 Box. It can be easily installed and managed to create a complete capillary system into the most complicated sites. The HPRC 6/12B BOX can be controlled by our Remote Control Management Software that allows the user to visualize the map of the installation, check the status of each jammer, activate or deactivate single or groups of units either manually or by time scheduling, monitoring against sabotage and faults, individual user access, sound and e-mail alerts.

KEY FEATURES

  • UP TO 12 BANDS / 30 W EACH BAND
  • HIGH GAIN INTERNAL CAMOUFLAGED PATCH ANTENNAS
  • REMOTE CONTROLLED BY SOFTWARE/LAN
  • ANTI VANDAL FIBER GLASS IP65 BOX

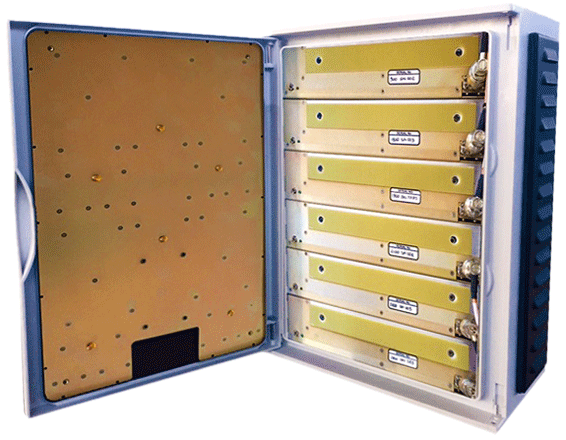

CPM HPRC-6/12B BOX
CPM HPRC-6/12B Box

TECHNICAL SPECIFICATIONS
Possible Frequencies and Power Output

  • LTE 700 30W ± 1.5 dB + Antenna Gain
  • CDMA 850 30W ± 1.5 dB + Antenna Gain
  • GSM 900 30W ± 1.5 dB + Antenna Gain
  • DCS 1800 30W ± 1.5 dB + Antenna Gain
  • CDMA 1900 30W ± 1.5 dB + Antenna Gain
  • UMTS 2100 30W ± 1.5 dB + Antenna Gain
  • Wi-Fi 2400 30W ± 1.5 dB + Antenna Gain
  • LTE 2600 30W ± 1.5 dB + Antenna Gain
  • Wi-Fi 5800 15W ± 1.5 dB + Antenna Gain
  • 2400 MHz Drones Rem Control
  • 5GHz/5.8GHz Drones Rem Control
  • Glonass / GPS Sat 1500MHz

Stand-alone Modular Construction: Each Jammer Module is completely independent, which allows greater flexibility for upgrades, maintenances and substitutions
Power Supply: AC110 / 220-240V / DC 27V
Jamming Technology: Direct Modulation Over Synthesized Signal
Temperature Range: -10°C / +55°C
Humidity: Up to 90%
Size: 380 x 575 x 260 mm (for 6 bands configuration)
Weight: 25Kg
Antennas: High Gain Internal Integrated Camouflaged Patch Antennas
Wired LAN: Ethernet remote control + Software Management
Cooling System: Automatic forced Air Cooling System
Deployment: Wall mounting, pole mounting

Data and specifications subject to change without notice
